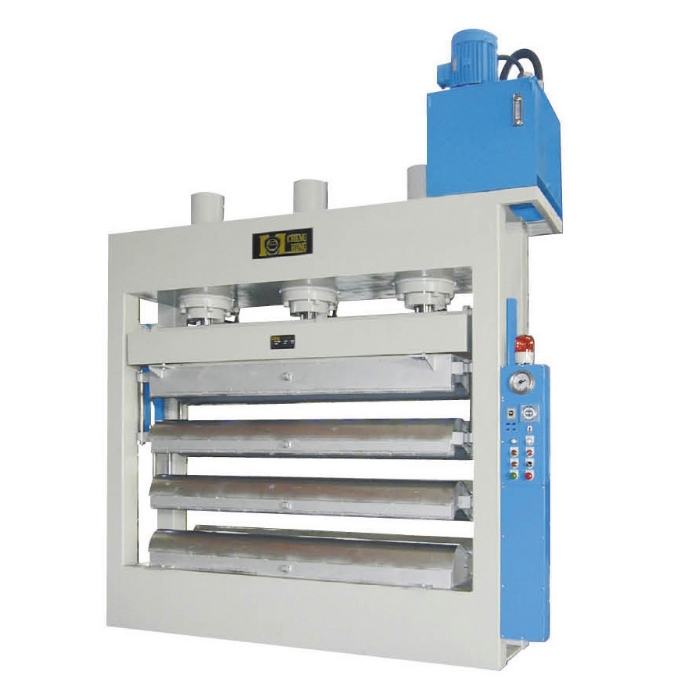

CT- Curved Wood Forming Press
特點(FEATURES)
- This m/c is suitable for various wooden membrane, solid wood made a curved forming pattern and can be installed electric platen molding to make multi-layer pressed forming, increasing production rate.
- This machine can be a cold press, which turns off the heating source. It can press flat wood with a multi-layer.
- Automatic temperature control, electric heating, and steam heating are available for this machine.
規格(Specification)
|
Model |
CT-33-100 |
CT-34-100 |
CT-35-100 |
CT-36-150 |
CT-48-100 |
|
Platen size |
910×910mm |
910×1220mm |
910×1520mm |
910×2500mm |
1250×2500mm |
|
Table height |
100tons |
100tons |
100tons |
150tons |
100tons |
|
Hyd. cyl. |
250×1 |
250×1 |
250×1 |
180×3 |
125×4 |
|
Stroke |
900mm |
900mm |
900mm |
900mm |
900mm |
|
Hyd. power |
7.5HP |
7.5HP |
7.5HP |
7.5HP |
7.5HP |
