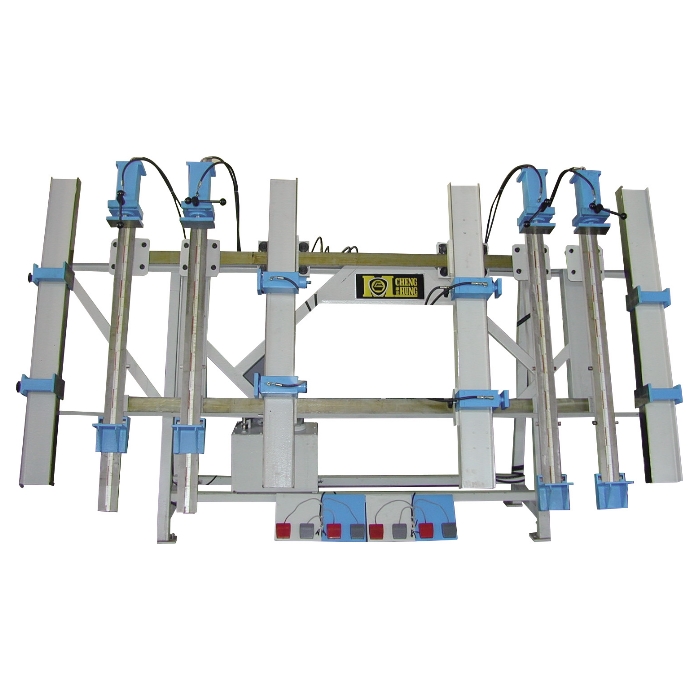

PF- Hyd. Frame Press
規格(Specification)
|
Model |
PF-3017 |
PF-3017-2 |
|
Working size |
3000 x 1700 mm |
3000 x 1700 mm |
|
Vertical cylinder stroke |
150 mm |
150 mm |
|
Horizontal cylinder stroke |
100 mm |
100 mm |
|
Hydraulic Power |
2 HP |
2 HP |
|
Machine size (L x W x H) |
3800 x 1100 x 2700 mm |
3600 x 1200 x 2500 mm |
|
Machine wt. |
870 kg / 1000 kg |
1600 kg / 1800 kg |
