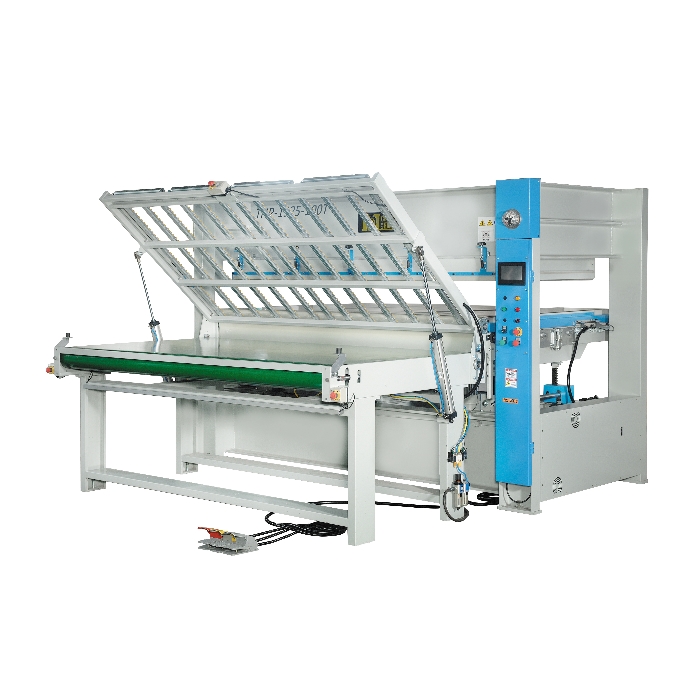

THP- U shaped Auto Feeding Unloading Hot Press
特點(FEATURES)
- Auto In/Out feeding at same position. Only one operator needed to loading & unloading the work-piece. Successfully to reducing the man-costs.
- Maximize space utilization. Unloading free rollers table is designed on the top of the loading belt. It is effectively to reduce operating space.
- PLC & HMI control panel. Integrating operating functions and information at a glance.
規格(Specification)
|
Model |
THP-1325-100T |
THP-1532-150T |
|
Platen Size |
1300*2500mm |
1500*3200mm |
|
Daylight |
380mm |
380mm |
|
Hyd. Cylinder |
Φ100*6 set |
Φ100*8 set |
|
Total Thrust |
100ton |
150Ton |
|
Power |
5HP |
7.5HP |
|
Machine Size(L*W*H) |
3530*3366*2160mm |
4250*3570*2310mm |
|
Machine Weight |
6000Kg |
7500Kg |
